Solar Cable tray Roll Forming Machine
High-performance Cable Tray Roll Forming Machine for producing durable metal cable trays with automated control and increased productivity.
Product attributes
After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Certification: CE
Voltage: As local
Brand Name: Solan
Place of Origin: China
Type: Tile Forming Machine
Condition: New
Product Specifications
Inquiry now
Cable tray roll forming machine, also known as cable tray forming machineorcable tray machine, is professional cold roll forming equipment for mass manufacturing of galvanized steel, stainless steel and aluminum cable trays. As a professional cold roll forming machine manufacturer, we supply fully automatic cable tray production line with integrated punching, forming, bending and cutting functions. Our high-precision roll forming equipment produces standard solid bottom cable trays, perforated cable trays and ladder cable trays widely used in industrial power distribution, building electrical engineering and cable wiring systems.
What Is a Cable Tray Roll Forming Machine?
Acable tray roll forming machine is a continuous cold forming system designed to process flat metal coils into standardized U-shaped, trough-type and profiled cable tray sections. Different from traditional manual bending and stamping processing, our automatic cable tray forming machine completes decoiling, leveling, servo punching, multi-pass roll forming, edge folding and fixed-length cutting in one continuous workflow.
Thisindustrial cable tray machine solves the problems of low output, inconsistent size and low assembly accuracy of traditional cable tray manufacturing. It is the core equipment for electrical hardware factories and metal profile manufacturers to produce high-quality cable management system products.
Main Cable Tray Types Produced by Our Machine
Our versatile cable tray roll forming machine supports manufacturing of all mainstream global cable tray profiles, fully customizable for different electrical engineering standards:
- Solid bottom cable tray – Fully enclosed trough tray for dust-proof and fully protected cable wiring
- Perforated cable tray – Ventilated hole design for heat dissipation, ideal for long-distance power cable laying
- Ladder type cable tray – Lightweight ladder structure for large-span industrial cable installation
- Galvanized steel cable tray – Hot-dip galvanized anti-corrosion tray for outdoor and harsh environment projects
- Stainless steel cable tray – Anti-rust and high-strength tray for chemical, marine and coastal engineering
- Custom size cable tray – Adjustable width, height and thickness for special engineering wiring requirements
Complete Production Line Configuration & Working Flow
Our full-automatic cable tray forming machine line is a highly integrated turnkey solution for cable tray mass production:

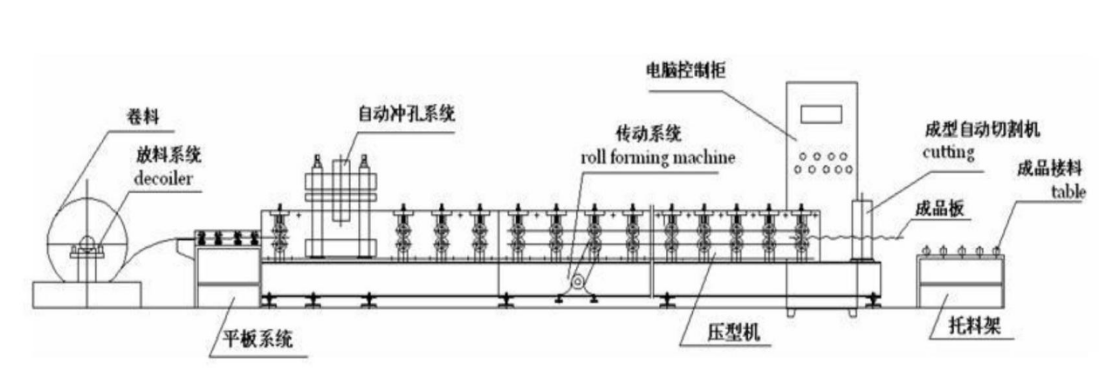

Hydraulic Decoiler → Sheet Leveling Machine → Servo Feeding → Automatic Punching System → Multi-pass Roll Forming → Edge Bending & Closing → Hydraulic Flying Cutting → Finished Product Discharging
Every procedure is PLC automatically synchronized. No manual secondary processing is required. The finished cable trays feature smooth surface, precise hole positioning, uniform profile dimension and perfect splicing performance for on-site electrical installation.
Core Technical Advantages of Our Cable Tray Machine
- Multi-size adjustable forming system: The solar cable machine supports adjustable width (50mm–600mm) and height (25mm–200mm), realizing multi-profile production on one single machine, greatly saving factory equipment investment cost.
- High-precision servo punching & cutting: Servo fixed-length control ensures cutting tolerance within ±0.3mm, punching hole position accurate and neat, no burrs, guaranteeing fast and smooth on-site tray assembly.
- Durable forming roller system: All forming rollers adopt Cr12MoV mold steel with quenching and precision polishing treatment, wear-resistant, anti-deformation and long service life for long-term continuous industrial operation.
- Wide material compatibility: Suitable for galvanized steel coil, cold-rolled steel, stainless steel and aluminum coil, processing thickness from 0.8mm to 3.0mm, covering light and heavy-duty cable tray production.
- Heavy-duty integrated machine frame: Thickened welded steel frame with stress relief treatment, stable operation, low vibration and no profile deformation during high-speed production.
- Intelligent PLC automatic control: Touch screen parameter setting, automatic counting, fault self-diagnosis and alarm function, easy operation and minimal labor dependence.
- High production efficiency: Continuous unmanned production speed up to 10–18m/min, greatly improving daily output and reducing production cycle for large orders.
- Global standard customization: Support customized international industrial voltage, meet EU, American, Southeast Asian and Middle East electrical engineering standards.
Wide Industrial & Engineering Applications
Cable trays manufactured by our cable tray roll forming machine are widely adopted in global electrical construction and industrial infrastructure projects:
- Industrial factory power distribution and cable wiring projects
- Commercial buildings, office buildings and shopping mall electrical systems
- Petroleum, chemical, marine and coastal anti-corrosion engineering
- Subway, tunnel, bridge and municipal public infrastructure
- Data center, power station and new energy power distribution projects
- Warehouse, logistics park and prefab building electrical layout
Technical Parameters
Parameter Item | Standard Specification |
|---|---|
Machine Name | Automatic Cable Tray Roll Forming Machine |
Processed Material | Galvanized Steel, Stainless Steel, Aluminum Coil |
Material Thickness | 0.8mm – 3.0mm (Customizable) |
Cable Tray Width | 50mm – 600mm (Adjustable) |
Cable Tray Height | 25mm – 200mm (Custom) |
Production Speed | 10 – 18 m/min |
Control System | PLC Touch Screen + Servo Driving System |
Processing Tolerance | Length Tolerance ±0.3mm |
Working Voltage | Global Industrial Voltage Customized |
Warranty Period | 24 Months |
FAQ | Frequently Asked Questions
Q1: What types of cable trays can your roll forming machine produce?
A1: Our cable tray roll forming machine can produce solid bottom cable trays, perforated ventilated cable trays and ladder cable trays. It supports full customization of size, hole pattern and profile shape to meet different electrical engineering needs.
Q2: Can one machine produce multiple sizes of cable trays?
A2: Yes. Our upgraded multi-size adjustable cable tray machine covers common width and height ranges. Customers can switch different tray specifications through simple parameter adjustment, no need to replace rollers, saving production cost.
Q3: What materials can this cable tray forming machine process?
A3: Solar cable machine is suitable for hot-dip galvanized steel, cold-rolled steel, stainless steel and aluminum metal coils. The finished cable trays feature strong anti-corrosion, durable and neat appearance for various engineering scenarios.
Q4: Is the machine suitable for large-scale factory mass production?
A4: Absolutely. Full automatic continuous production design, stable high-speed operation, low failure rate and high yield rate. Solar cable machine is specially designed for professional cable tray manufacturing factories with large order volume.
Q5: What overseas after-sales support do you provide?
A5: We provide complete English operation manuals, wiring diagrams and debugging videos, 24/7 online remote technical support, and support overseas on-site installation, commissioning and operator training.
Why Choose Our Cable Tray Roll Forming Machine
We are a professional cold roll forming machine manufacturer focusing on electrical metal profile forming solutions. Our cable tray machine features reasonable structural design, stable operation, high forming precision and strong versatility. Compared with ordinary equipment on the market, our cable tray forming line has higher automation, lower failure rate and stronger multi-specification production capacity, helping global electrical equipment manufacturers improve product quality, expand product range and increase market competitiveness.
Contact us now to get customized cable tray roll forming solution and factory competitive price!
