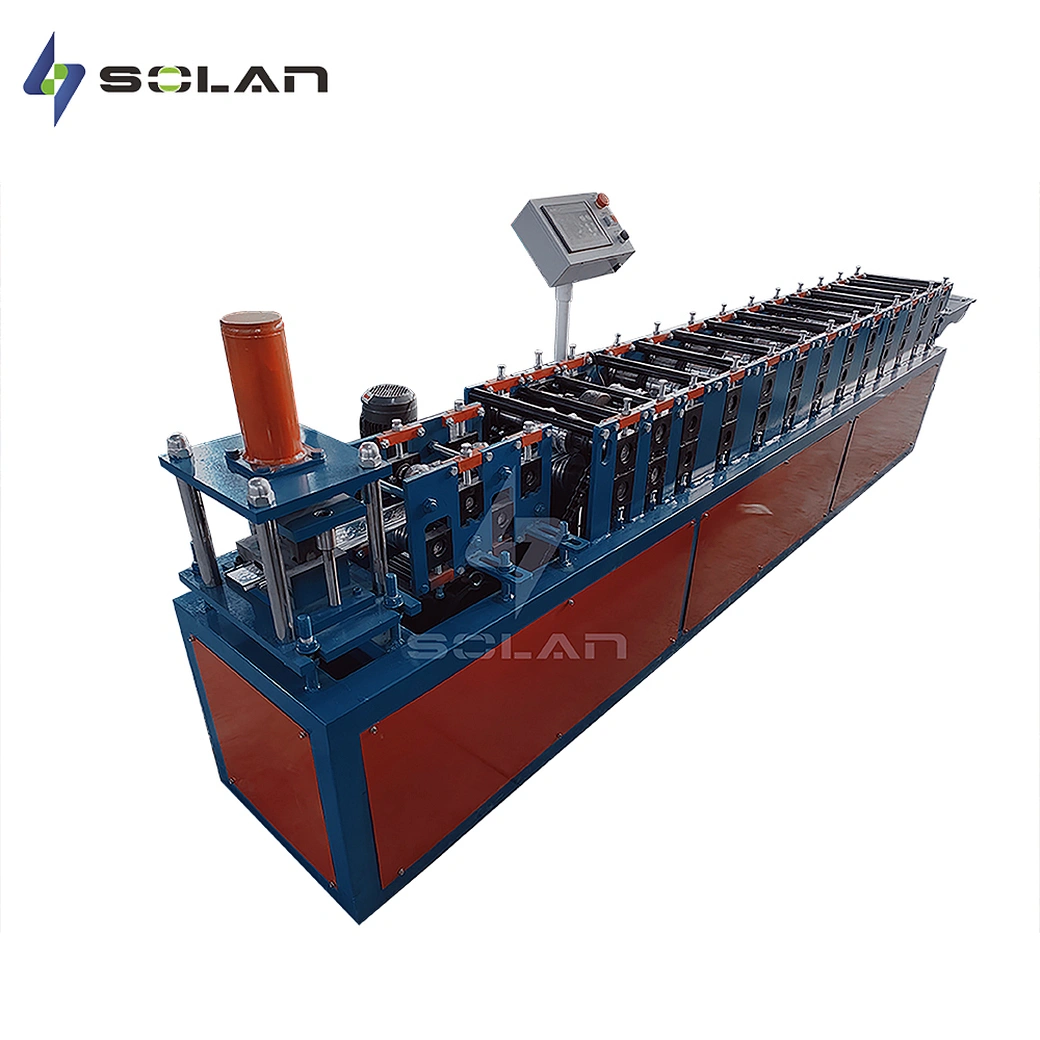

Rolling Shutter Door Roll Forming Machine

Rolling shutter doors are widely used in the industrial field. For example, factories, warehouses, logistics centers, and other places require large areas of doors. The rolling shutter doors can be raised or lowered at any time, saving space. Moreover, roller shutter doors are mostly made of metal, which is sturdy and durable, and can withstand harsh weather conditions such as high temperature, cold, wind, and rain, ensuring the safety of property in the industrial field.
Product attributes
Applicable Material: Carbon Steel; Aluminum; STAINLESS STEEL
Dimension(L*W*H): 5500*900*1500 mm
Production Capacity: 15 M/Min
After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 YEAR
Certification: CE
Weight: 1850 KGS
Voltage: 380v/220V/415V/440V
Model Number: SL-SD001
Brand Name: Solan
Product Specifications
Inquiry now

Parameter

itemvalue
Voltage380v/220V/415V/440V
Dimension(L*W*H)5500*900*1500
Weight1850kg
Rolling thinckness0.8-2MM
Feeding width124mm
Raw materialGL GI PPGI PPGL
Roller material45#steel Chrome Plated
Shaft material45# Steel Outer Diameter: 70mm
Cutting blade materialGCr 12 High Grade Steel
Main frame350mm/400mm H-Beam
Control systemPLC(imported Brand)
Cutting typeAutomatic Hydraulic Cutting
Decoiler5T Manual Decoiler(with braking function)
KeywordsRolling Shutter Door Roll Forming Machine

The application of rolling shutter doors in the residential field is becoming increasingly widespread, mainly used in the decoration of doors and windows such as villas, gates, garages, balconies, etc.
Rolling shutter doors not only save space, but also have functions such as anti-theft, sound insulation, fire prevention, and insect prevention. In summary, roller shutter doors are a versatile and multifunctional decorative material for doors and windows.
In addition to the above three areas, roller shutter doors are also suitable for entertainment venues, sports venues, basements, hospitals and other places.
